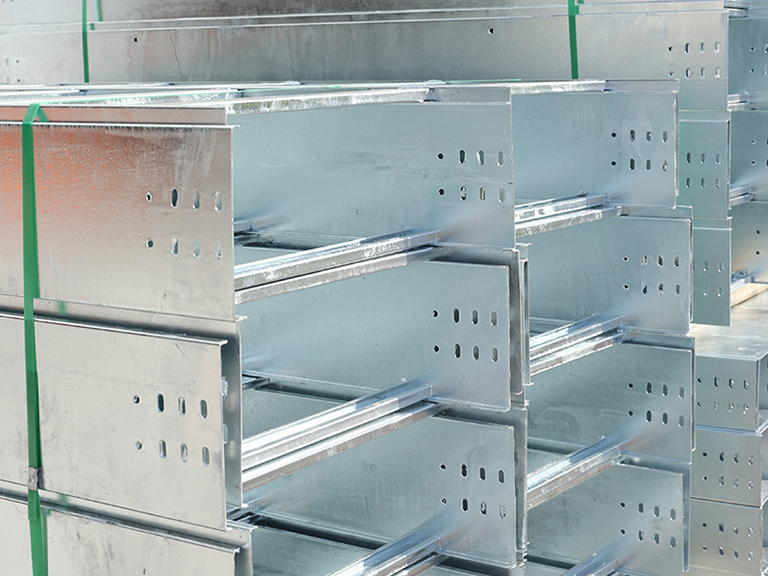

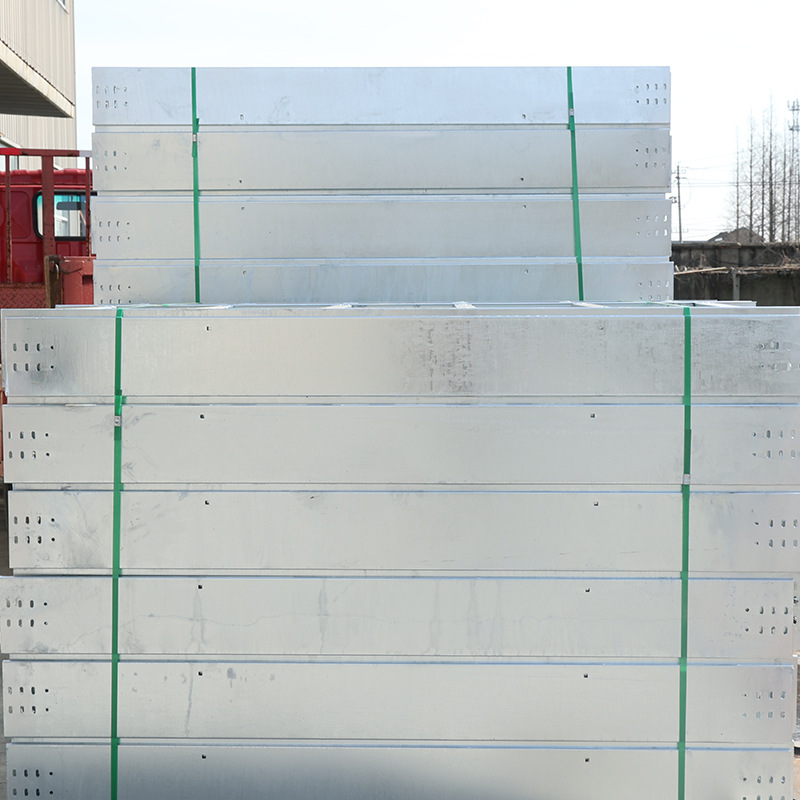

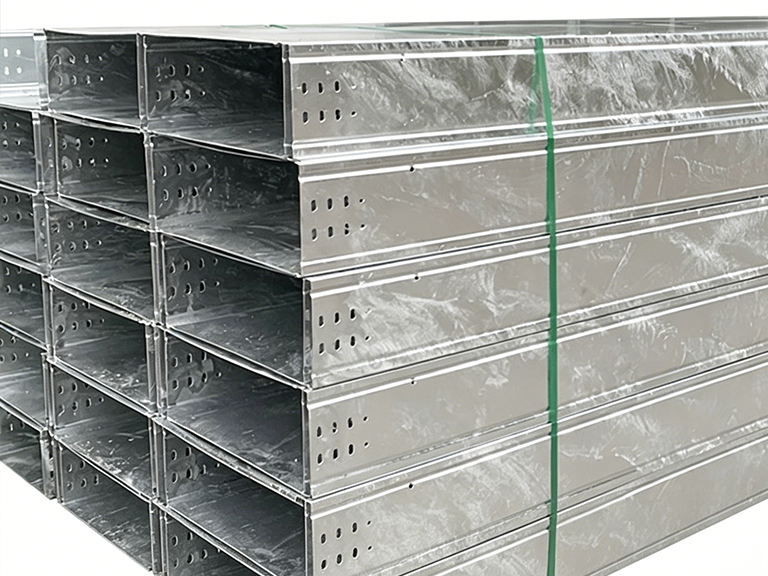

Hot-Dip Galvanized Cable Trays

PRODUCT PARAMETERS

  • Material: Carbon Steel (Q235B / Q355B)
  • Surface Treatment: Hot-Dip Galvanized (HDG)
  • Standard: ASTM A123 / ISO 1461 / GB/T 13912
  • Zinc Coating Thickness: 65–100 μm (≥80 μm optional)
  • Width: 100mm – 600mm customizable
  • Height: 50mm – 150mm
  • Length: 2000mm / 3000mm custom length available
  • Steel Thickness: 1.5mm – 3.0mm
  • Load Capacity: 50 – 300 kg/m
  • Type: Perforated / Ladder / Trough
  • Corrosion Resistance: ≥25 years outdoor service life
  • Installation Type: Ground-mounted / Rooftop PV
  • Accessories: Covers, connectors, brackets, clamps
  • Application: Solar PV cable management system
Description
FAQs
Request A Quote

Description

Hot-Dip Galvanized Cable Trays are cable management systems made from steel and treated through a hot-dip galvanizing process. By immersing the fabricated trays into molten zinc, a thick and durable protective coating is formed, providing excellent corrosion resistance and making them suitable for outdoor and harsh environments.
These cable trays are widely used to support, organize, and protect electrical cables in industrial, commercial, infrastructure, and photovoltaic (PV) projects, ensuring safe and efficient cable routing.
