Screw Piles

PRODUCT PARAMETERS

  • Material: Q235B / Q355B Carbon Steel
  • Surface Treatment: Hot-dip Galvanized (≥65–100 μm)
  • Length: 800 mm – 3000 mm (customizable)
  • Diameter: 48 mm – 114 mm
  • Helix Diameter: 100 mm – 300 mm
  • Helix Thickness: 3 mm – 8 mm
  • Bearing Capacity: 5 kN – 50 kN
  • Uplift Capacity: 5 kN – 30 kN
  • Installation Torque: 1500 – 6000 N·m
  • Service Life: ≥25 Years
  • Location: China
Description
FAQs
Request A Quote

Description

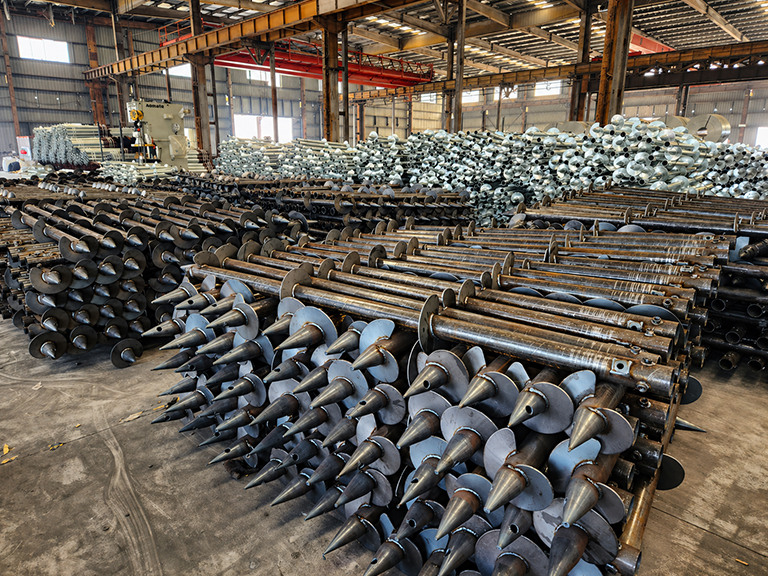

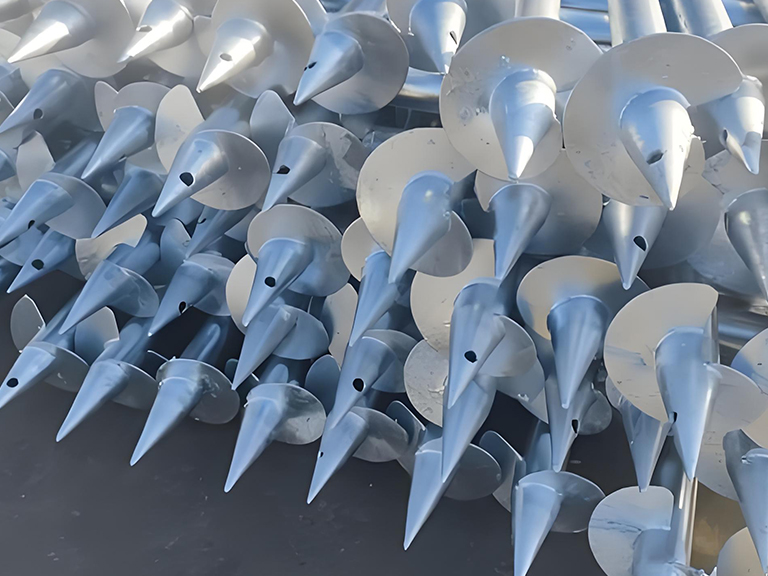

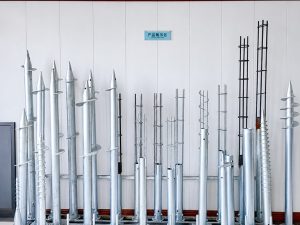

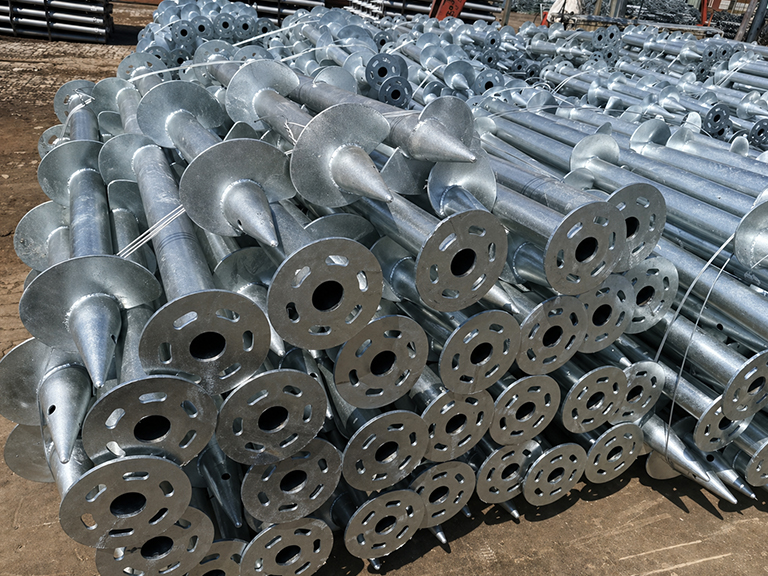

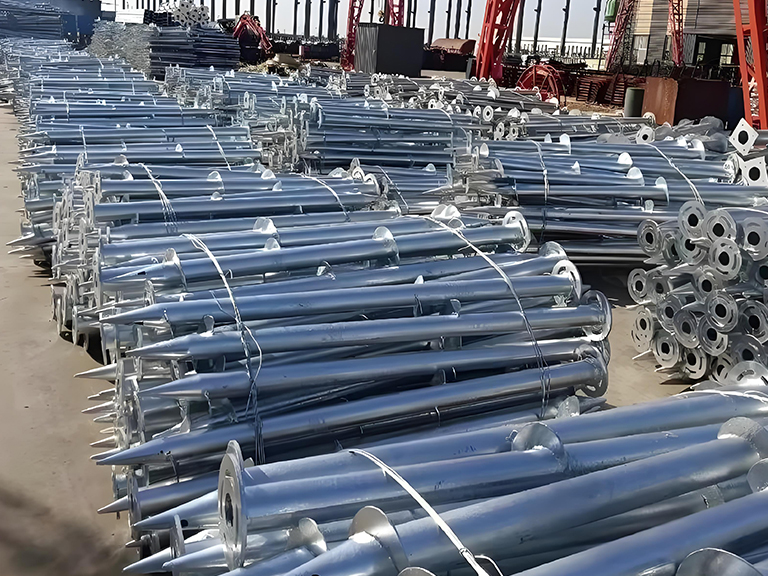

Screw Piles (also known as helical piles or ground screws) are advanced foundation systems consisting of steel shafts with helical plates that are mechanically screwed into the ground. They are widely used in construction and photovoltaic (PV) mounting systems as a fast, efficient, and environmentally friendly alternative to traditional concrete foundations.
Manufactured from high-strength steel (such as Q235 or Q355) and typically treated with hot-dip galvanizing or Zinc-Aluminum-Magnesium (Zn-Al-Mg) coatings, Screw Piles offer excellent durability and corrosion resistance for long-term outdoor use.
