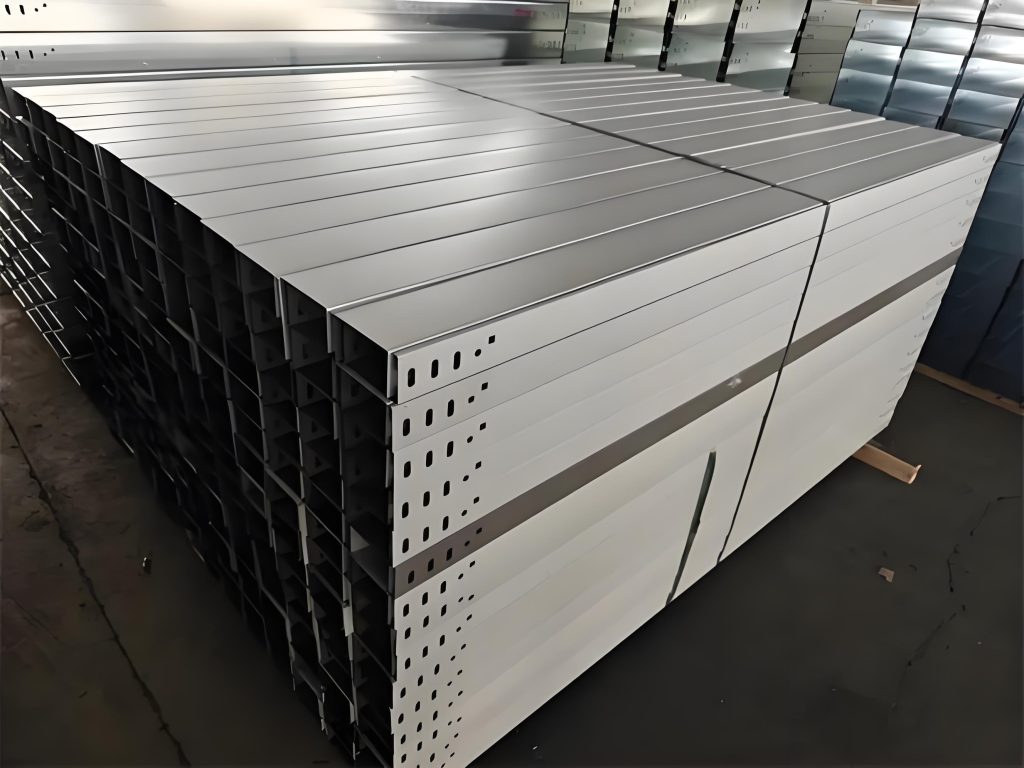

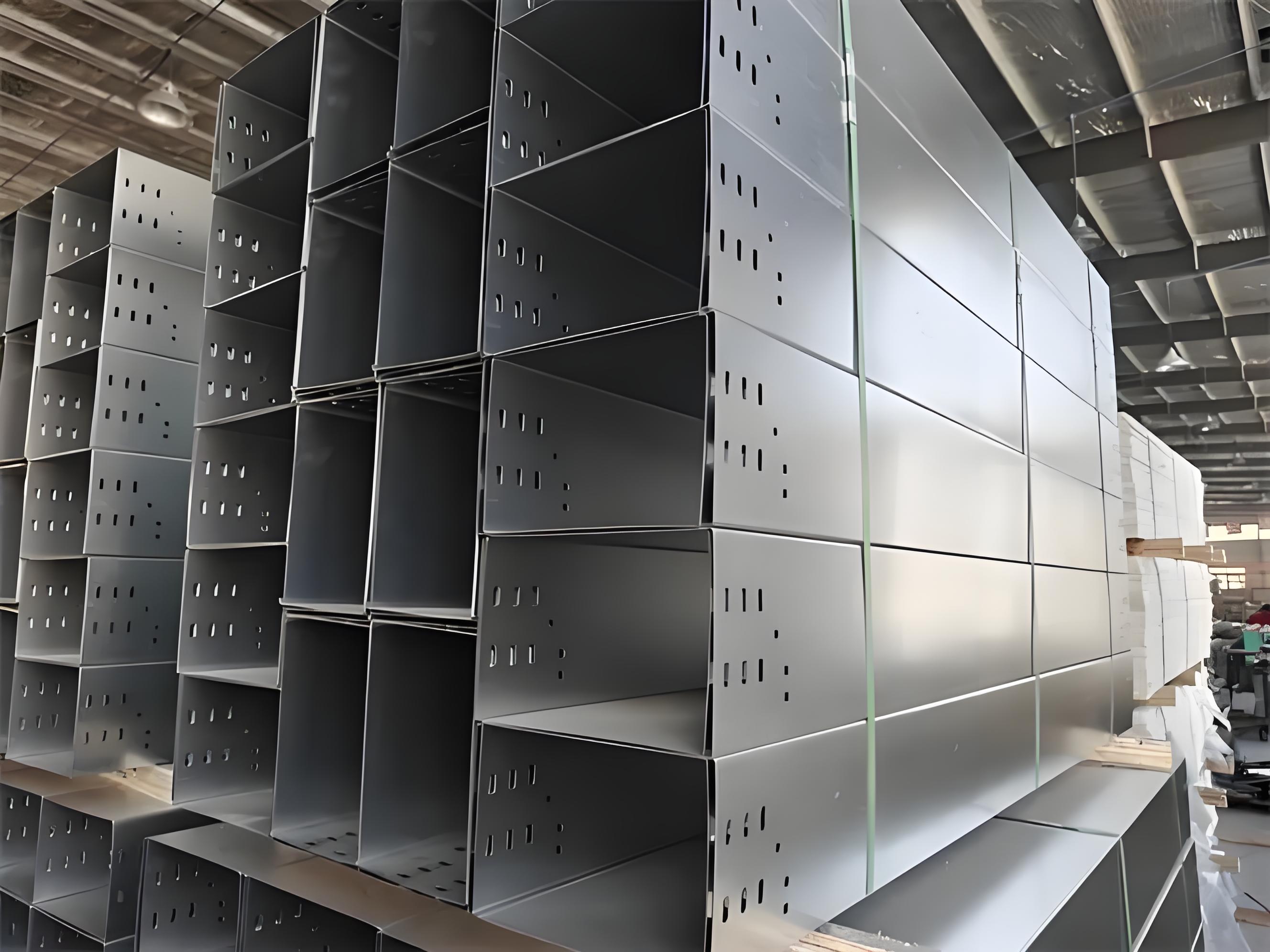

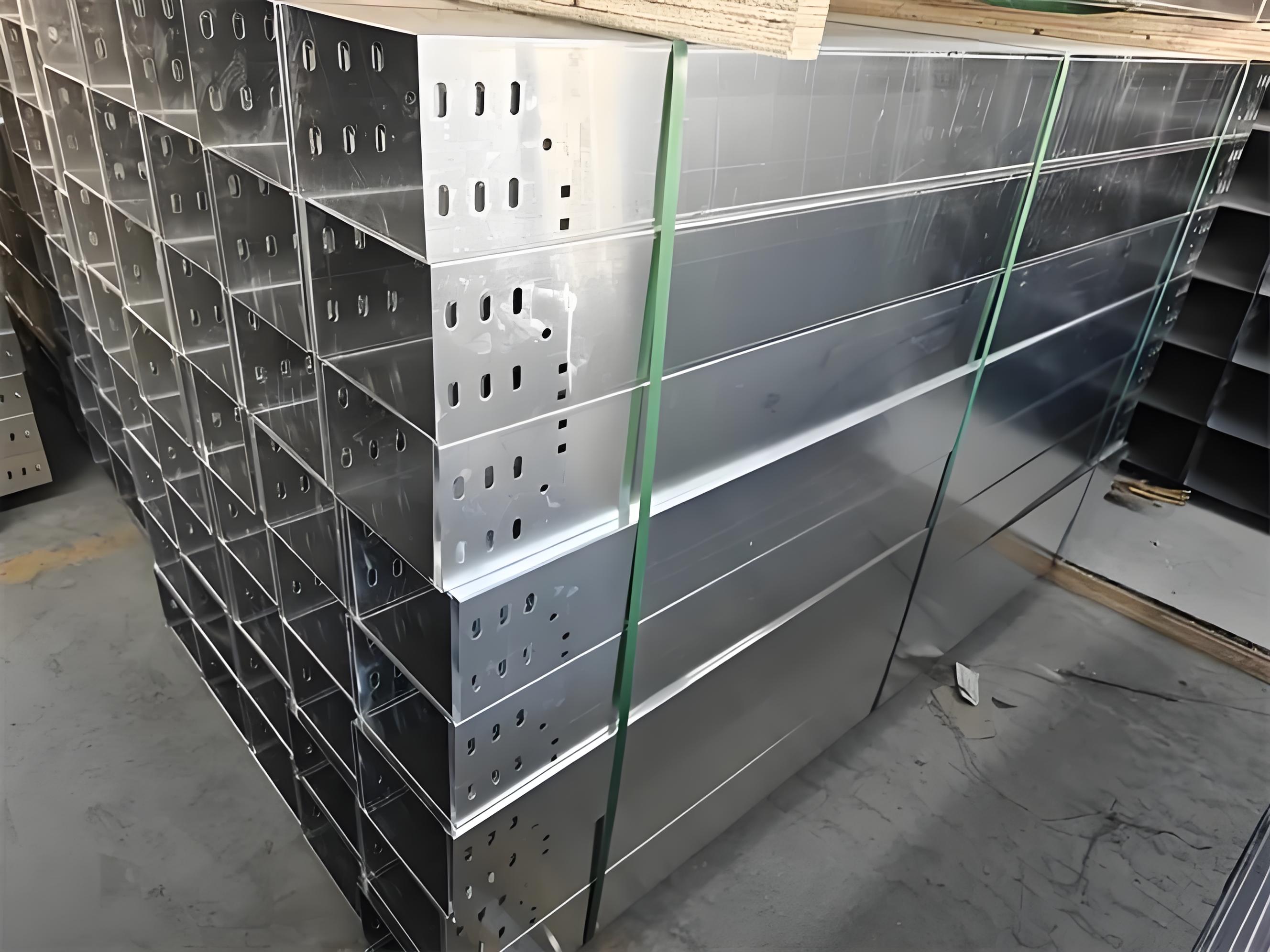

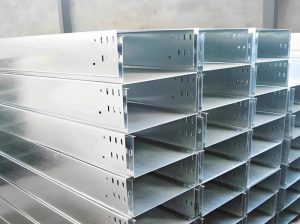

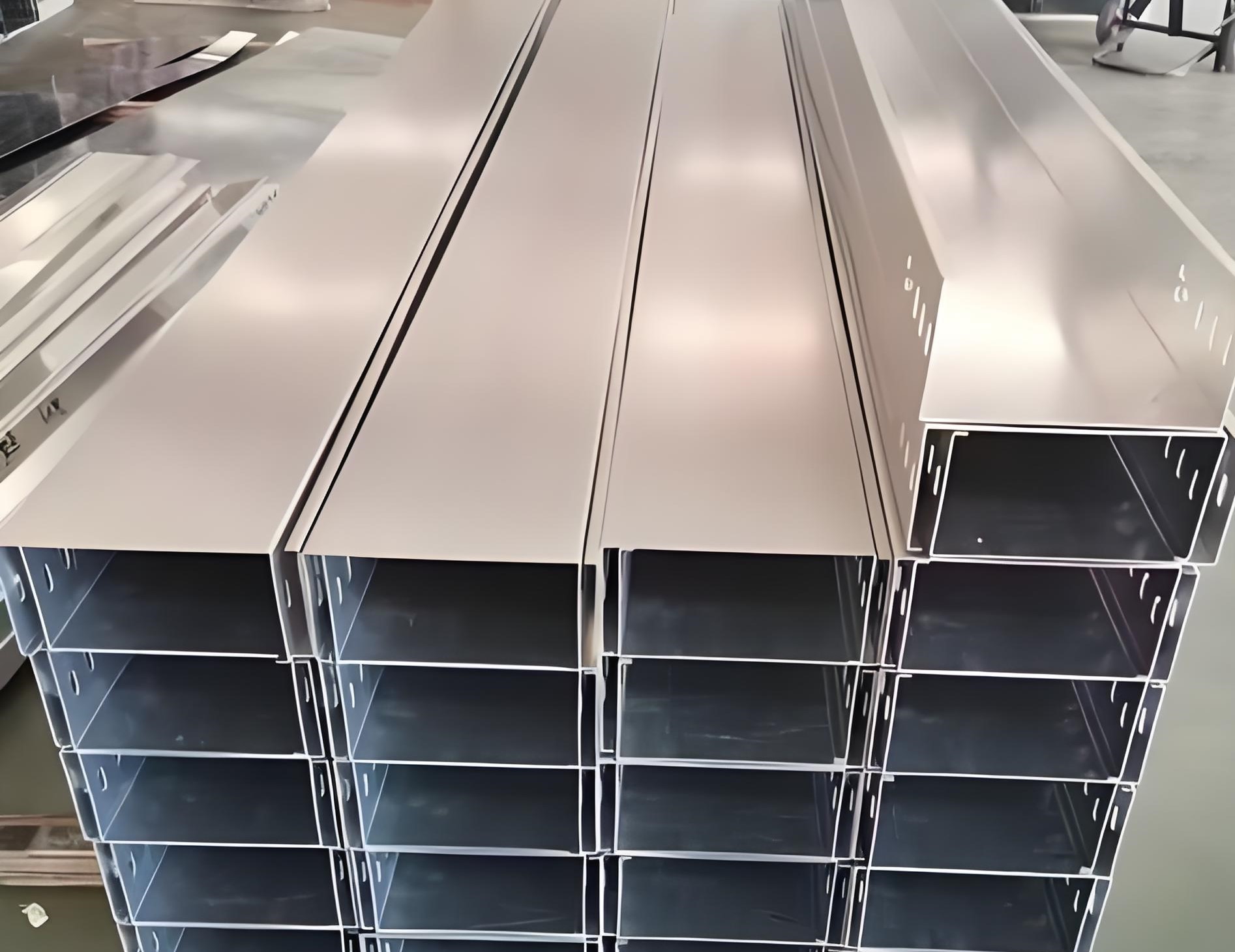

Zn-Al-Mg coated cable tray

PRODUCT PARAMETERS

  • Material: Zn-Al-Mg Coated Steel Sheet
  • Coating Type: Zinc-Aluminum-Magnesium (ZM)
  • Coating Mass: ZM120 / ZM150 / ZM275
  • Coating Thickness: 20–40 μm
  • Width: 100mm – 600mm (customizable)
  • Height: 50mm – 150mm
  • Length: 2000mm / 3000mm
  • Steel Thickness: 1.2mm – 2.5mm
  • Load Capacity: 50 – 300 kg/m
  • Type: Perforated / Ladder / Trough
  • Corrosion Resistance: 3–10 times better than HDG
  • Service Life: ≥30 years (outdoor)
  • Standard: JIS G3323 / EN 10346
  • Application: Solar PV cable routing system
Description
FAQs
Request A Quote

Description

Zn-Al-Mg cable tray is a new-generation cable management solution made from zinc-aluminum-magnesium coated steel, specially designed for photovoltaic systems. Compared with traditional hot-dip galvanized products, it offers superior corrosion resistance, self-healing capability, and longer service life, especially suitable for harsh environments such as coastal or high-humidity areas.
It is widely used in ground-mounted solar plants, rooftop PV systems, and solar carports.
